PlanFlow: A Trajectory-Aware FPGA Dataflow Architecture for LLM Reinforcement Learning

PlanFlow exposes trajectory semantics as a compact hardware-visible Trajectory Control Token (TCT) and uses it to jointly schedule decode, KV residency, and learner traffic under a shared HBM budget.

1. Trajectory Descriptor Engine (TDE) — compresses a short state window into a 64–128 bit TCT
2. Unified Utility Scheduler (UUS) — scores every memory request as value-per-byte
3. Utility-aware staging — epoch-bounded Stage-Admit / Stage-Sample (not classical unbounded replay)

Soft-prefix conditioning is an optional TCT consumer, not the architectural thesis.

Key Features

• TCT control plane: reuse, urgency, learning utility, and phase fields in one metadata word
• Value-per-byte HBM arbitration: KV, staging, and adapter traffic under one Score(R)=U/C
• Epoch-bounded staging: Δ_max policy-version gating with stored log-probabilities for PPO
• Bandwidth efficiency: η_bw = return / (decode+KV traffic + learner traffic)

Installation

git clone https://github.com/NoakLiu/PlanFlow.git
cd PlanFlow

conda create -n planflow python=3.10 -y
conda activate planflow

pip install -r requirements.txt   # includes pybind11, pytest, torch, …
pip install -e .                  # builds C++ UUS/bandwidth kernels (needs a C++17 compiler)

Quick Start

python examples/train_planflow.py \
    --task webshop \
    --timesteps 200000 \
    --actors 128

python examples/planflow_demo.py
python examples/e2e_hybrid.py --model qwen2.5-14b

Python API

import asyncio
from planflow import PlanFlowTrainer, TrainingConfig

async def main():
    config = TrainingConfig(
        env_name="webshop",
        total_timesteps=100000,
        num_actors=128,
        tct_bitwidth=64,
        enable_soft_prefix=False,  # optional TCT consumer
        device="cuda",
    )
    trainer = PlanFlowTrainer(config)
    metrics = await trainer.train()
    print(metrics.evaluation_results)

asyncio.run(main())

Architecture

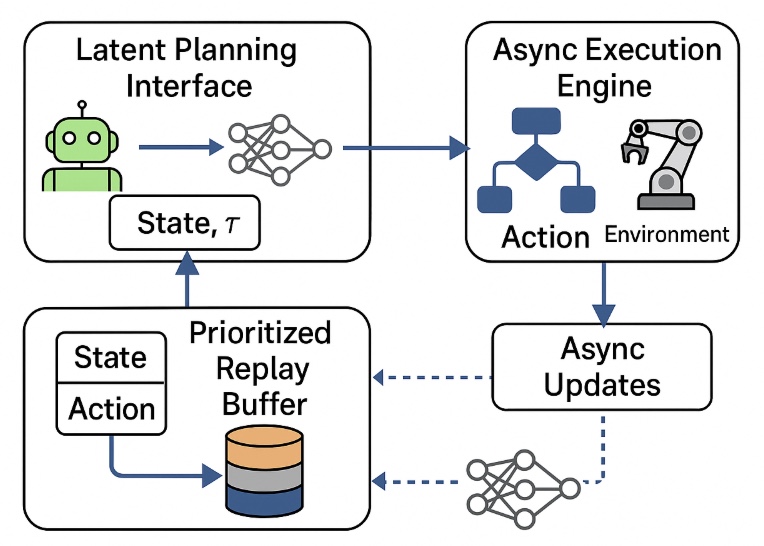

Figure 1: Algorithm architecture — trajectory-aware RL dataflow with TCT conditioning.

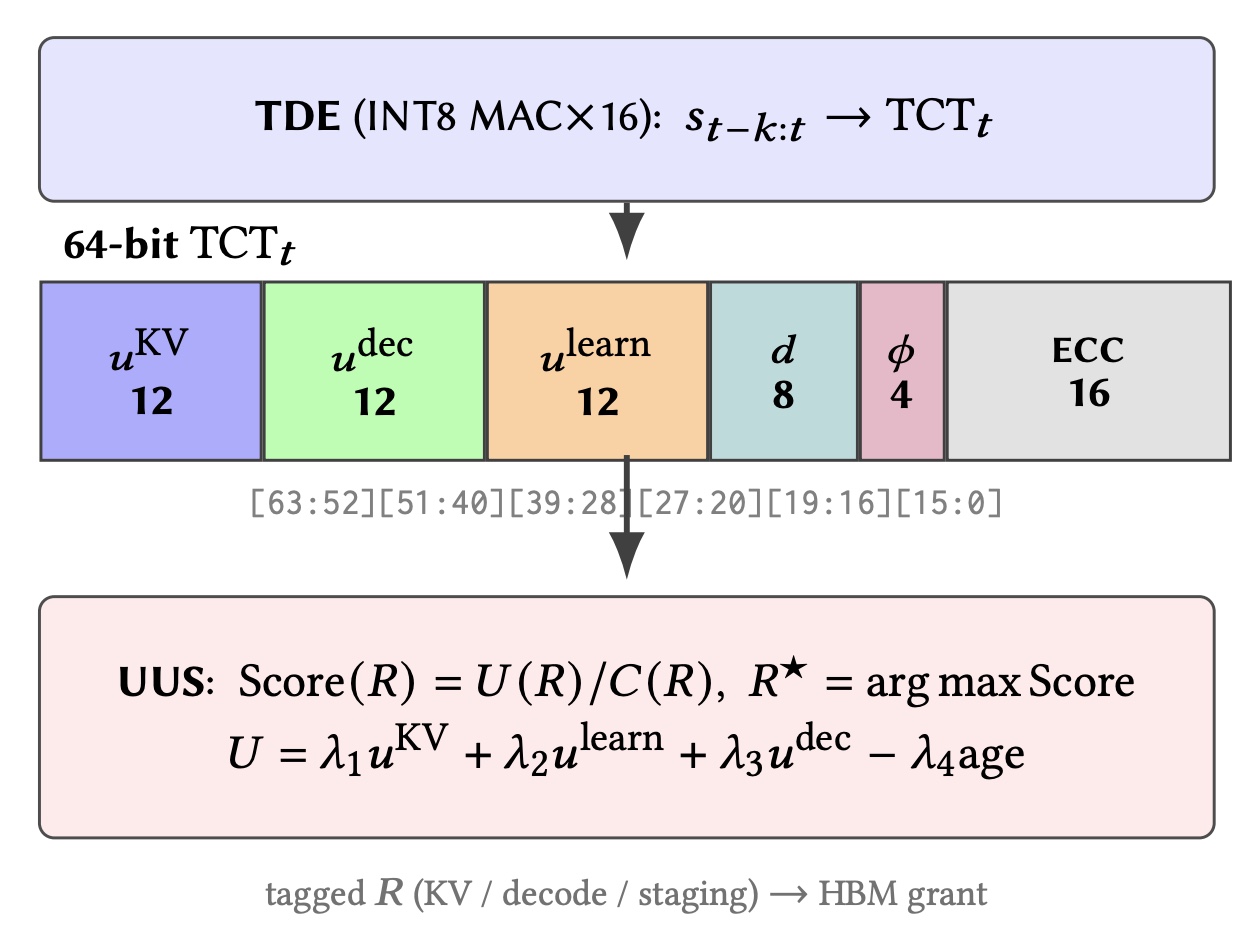

Figure 2: FPGA microarchitecture — HBM/URAM datapath and utility-aware scheduling.

s_{t-k:t} ──► TDE ──► TCT_t (64b)
                        │
        ┌───────────────┼───────────────────┐
        ▼               ▼                   ▼
  soft-prefix*     UUS Score(R)=U/C    staging U_adm
  (optional)       HBM/URAM grants     Stage-Admit/Sample

Bandwidth view

B(π) = E[Σ_t b(s_{1:t})] + E_S[w |ℓ_PG|]
η_bw(π) = E[Σ r_t] / B(π)

PlanFlow raises η_bw by refusing low-utility bytes when HBM ports are saturated.

TCT packing (default 64-bit)

UUS scoring

U(R) = λ1·u_KV + λ2·u_learn + λ3·u_dec·I_decode − λ4·age(R)
C(R) = bytes + γ·lat_c(R)
Score(R) = U(R) / C(R)

Core API

from planflow.core import (
    TrajectoryDescriptorEngine, TDEConfig,
    UnifiedUtilityScheduler, UUSConfig, MemoryRequest, RequestType,
    TrajectoryStagingBuffer, StagingConfig,
    pack_tct, unpack_tct,
)

# TDE → TCT
tde = TrajectoryDescriptorEngine(TDEConfig(state_dim=512, window_k=4))
tct = tde.emit_tct(state_window)  # torch [k+1, D]

# UUS grant
uus = UnifiedUtilityScheduler(UUSConfig())
req = MemoryRequest(
    stream_id=0, req_type=RequestType.DECODE, addr=0, bytes=256,
    tct=tct, age=0.1, lat_c=0.1,
)
print(uus.score(req))
grants = uus.grant([req])

# Epoch-bounded staging
staging = TrajectoryStagingBuffer(StagingConfig(delta_max=4))
staging.stage_admit(state, action, reward=1.0, log_prob_old=-0.5, tct=tct)
batch, weights = staging.stage_sample(batch_size=32)

Systems Results (Alveo U280)

Compared with GPU PPO under full FPGA+GPU+host power accounting, PlanFlow reduces external-memory traffic by up to 43% (0.57× on Mistral-7B) and improves full-system tokens-per-joule by up to 2.15× (Llama-3.1-8B), with Success@1 within 0.6 percentage points of software EchoRL.

Sys W = average (P_{\mathrm{FPGA}}+P_{\mathrm{GPU}}+P_{\mathrm{host}}). †Base GEMMs on a coupled GPU; TDE/UUS/KV remain FPGA-resident.

Success@1 at 200K steps (mean±std):

See exp.md for HBM throttle, FPGA-RL ports, TCT bitwidth, and ablations.

Supported Tasks

WebShop, Game24, CRUXEval, ALFWorld, GSM8K, HumanEval (paper evaluation); ARC and MiniGrid remain available as environment interfaces.

FPGA RTL (Alveo U280)

SystemVerilog under rtl/: TCT pack, TDE, UUS, KV cuckoo, staging, CSR, 6× HBM AXI shims, 300/250 MHz CDC, and Vitis kernel planflow_kernel. Build recipe: rtl/README.md (synth_u280.tcl + package_xclbin.sh). Without Vivado the Python runtime uses a bit-accurate co-sim of the same control plane.

cd rtl/tb && make all    # iverilog smoke: TCT pack, Eq.19, CDC FIFO
python examples/e2e_hybrid.py --model qwen2.5-24b --device cpu

14B/24B base GEMMs run on a coupled GPU (UUS-gated); standalone 7B–9B keep quantized adapter + decode WS in the 8 GB HBM (Gemma-2-9B uses INT4). S_desc ≤ 280 B; T_eff = max(T_rollout, T_DMA+T_PPO).

Python package: planflow (formerly echo_rl).

Testing

pytest tests/
python examples/planflow_demo.py
